Dual Conductor Right (or standard) Angle Coil Cord – 5′, 10′ and 20′ Lengths (CC3000R/CC3000 Series)
$18.90 – $26.11
Dual Conductor Right (or standard) Angle Coil Cord – 5′, 10′ and 20′ Lengths
CC3000R
Dual Conductor Coil Cord: If one conductor is damaged, the operator will maintain the path-to-ground through the other conductor.
Length: Coil cord is 5ft, 10ft, and 20ft long extended
Plug: 3.4mm right angle mono plug or standard (R=right angle)
Resistor: One megohm series resistor
Durability: Superior resistor connection strain relief
Standards: Exceeds ANSI/ESD S1.1 Bending Life Test. Tested at over 200,000 cycles vs. the 16,000 requirements.
Compatible with model number CM1600, CM1601, CM1602, CM2815, CM2800 constant monitors from Transforming Technologies.

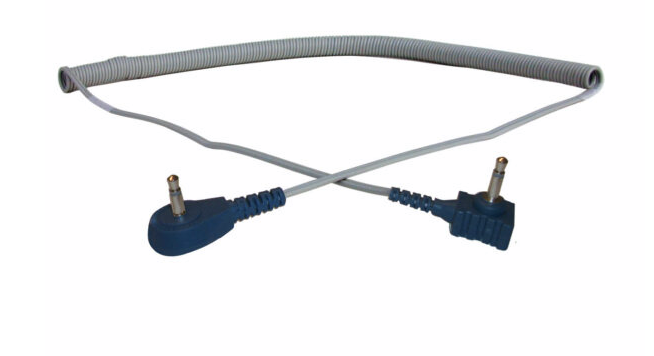

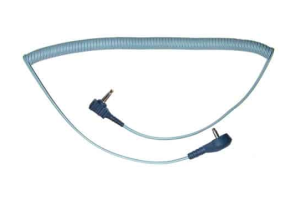

CC3000 Series Right (and standard) Angle 5ft, 10ft or 20ft Long Dual Conductor ESD Coil Cord is designed for use with a Dual Conductor Constant Workstation Monitor to maximize ESD protection.

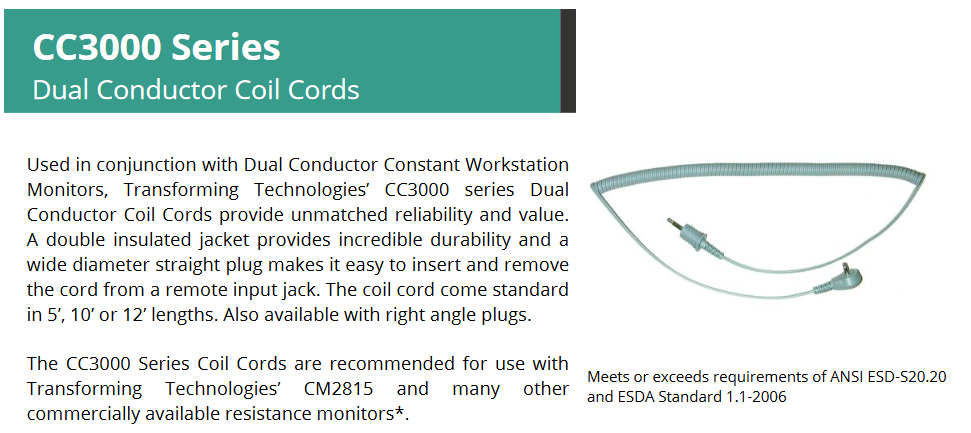

CC3000R series Right angle available in 5ft, 10ft and 20ft Long Dual Conductor ESD Coil Cord (also available in standard if Right angle is not desired) has a double insulated jacket that provides incredible durability and a wide diameter straight plug makes it easy to insert and remove the cord from a remote input jack. The coil cord come standard in 5ft, 10ft or 12ft lengths.
The CC3000R Series Coil Cords are recommended for use with Transforming Technologies CM2815 and many other commercially available resistance monitors*.
Meets or exceeds requirements of ANSI ESD-S20.20 and ESDA Standard 1.1-2006
