Simco-ION Aerostat XC2 Ionizing Blower

$23.10$739.00

Clear

Product Description

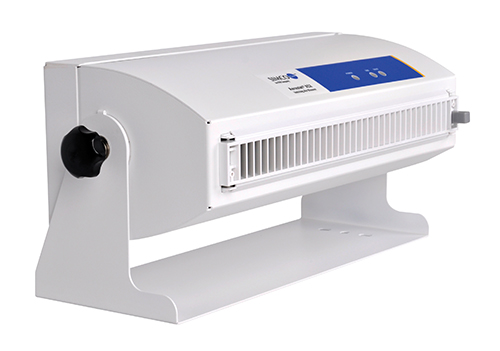

Simco-ION Aerostat XC2® Extended Coverage Area Ionizing Blower

Extended Coverage Benchtop Ionizing Blower with Fan-stalled Indicator

Simco-Ion’s Aerostat XC2 Blower provides complete wide area ionization protection and is designed and built for reliable, long-term static control. The XC2 offers outstanding coverage for larger areas with <12 second discharge times at 6 feet (1.8m) distance from the face of the blower. The weight-saving design allows the Aerostat XC2 to be mounted above the work surface, which is especially effective for flat-panel display module assembly.

  • Large, near symmetric ionization area coverage
  • Weight-saving design
  • Easy-to-use, built-in emitter cleaner
  • ±10V self-balancing (“Micropulse”) technology
  • Local alarm LEDs, Facility Monitoring System (FMS) connection and optional audible alarm
  • Integrated heater for warm air flow

    SPECIFICATIONS

    Input Voltage 100-240 VAC, 50/60 Hz; 0.5A (no heater), 3.5A (100-120 VAC heater); 1.9A (220-240 VAC heater)
    Discharge 1.0 sec @ 1’ (1000-100V high fan speed)
    Balance 0 ±10V
    Coverage Area 3’W x 6’L (effective coverage area is up to 6’ from the blower face)
    Cleanroom Class Meets ISO 14644-1 Class 6 (Fed Std. 209E Class 1000)
    Dimensions 14.13W x 7.2H x 6.55D in. (35.9W x 18.3H x 16.6D cm) with stand
    Weight 7 lbs (3.2 kg) with stand



***ELIGIBLE FOR Free Shipping, Enter Promo Code: FREESHIP when you get to checkout!

91-XC2-US-04 Aerostat XC2 Extended Coverage Benchtop Ionizer, no heater, 120V, 60Hz $708.00
91-XC2-EU-04 Aerostat XC2 Extended Coverage Benchtop Ionizer, no heater, 230V, 50Hz, EU $708.00
91-XC2-US-04H Aerostat XC2 Extended Coverage Benchtop Ionizer, with heater, 120V, 60Hz $728.00
91-XC2-US-04A Aerostat XC2 Extended Coverage Benchtop Ionizer, w/Audible Alarm, no heater, 120V, 60Hz $718.00
91-XC2-US-04HA Aerostat XC2 Extended Coverage Benchtop Ionizer, w/Audible Alarm, Heater, 120V, 60Hz $739.00



Aerostat XC2 Data Sheet

TARGET APPLICATIONS

The extended coverage of the Aerostat XC2 combined with its’ lightweight design is perfect for neutralizing static charge from overhead and other large target areas.

Aerostat XC2 Ionizing Workstation

The Aerostat XC2 reaches an extended coverage area across the worksurface without sacrificing excessive work space.

Aerostat XC2 Ionizing Benchtop

**Models available with and without Heater, with and without Audible Alarm, and with both, in US 120V, EU, UK, CN 230V and JP 100V

Aerostat%20XC2











Air Volume: 95 cfm (low), 150 cfm (high fan speed)
Air Velocity2: 620 fpm @ 12”, 435 fpm @ 24”, 325 fpm @ 36”, 265 fpm @ 48” (high fan)
Audible Noise: 58 dB (low fan speed), 70 dB (high fan speed) measured at 2’ in front of blower
Ozone <0.05 ppm measured at 1’ in front of blower
Operating Env.3 Temperature: 50-95°F (10-35°C), humidity 30-60% RH, non-condensing
Audible Alarm Fault and fan stall (optional)
Mounting Powder-coated steel stand with skid resistant rubber feet
Enclosure Powder-coated aluminum chassis
Dimensions 14.13W x 7.2H x 6.55D in. (35.9W x 18.3H x 16.6D cm) with stand
Weight 8 lbs (3.1 kg) with stand
Warranty 2 year limited warranty
Certifications RoHS 2 Compliant, CE, Nemco and NRTL pending

Additional information

Weight 4 lbs
Dimensions 45 x 25 x 20 in
New Attribute

I91-XC2-US-04 Aerostat XC2 Extended Coverage Benchtop Ionizer, no heater 120V, 60Hz, I91-XC2-EU-04 Aerostat XC2 Extended Coverage Benchtop Ionizer, no heater, 230V, 50 Hz, EU, 91-XC2-US-04H Aerostat XC2 Ionizing Blower (120V/60Hz) with Heater, 91-XC2-US-04A Aerostat XC2 Ionizing Blower w/ Audible Alarm (120V/60Hz) NO Heater, 33-6003-01 Filter Kit $60, 33-6004-01 Replacement Filters $16.00 (pk6), 91-XC2-US-04HA Aerostat XC2 Extended Coverage Benchtop Ionizer w/ Audible Alarm and Heater, 120V, 60Hz
