Simco-ION Aerostat Guardian

$200.00$1,119.00

Clear

Product Description

AC technology for stable performance; Inherent balance to 0 +/-5 V
Integrated heater and task lights, Ionization indicator light, Patented built-in emitter cleaner

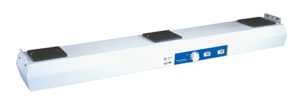

Simco-ION Aerostat  Guardian

  • Sustainable Quality Overhead Ionizing Blower

    Simco-Ion’s Aerostat Guardian Blower provides superior static charge decay over an entire work surface area. Equipped with task lighting and an integrated heater, the Guardian offers user-friendly operation while effectively protecting sensitive components from ESD damage.

        BENEFITS:

    • Inherently balanced to 0 ±5V
    • Integrated heater and task lights
    • AC technology
    • Ionization light
    • Integrated emitter point cleaner

***ELIGIBLE FOR Free Shipping, Enter Promo Code: FREESHIP when you get to checkout!





CCSTAND – Available in fixed and portable versions!

Need or have an overhead ionizer, but don’t know where to mount it? Check out our new CCS Stand that will work for most any overhead ionizer for either portable version or fixed mount for  your work station! See link below for downloadable assembly instructions and more info!

Fixed Mount – $200.00 (54.5 inch overhead ionizer stand assembly) (30 inches high) ORDER NOW!

Portable Mount – $300.00 (54.5 inch overhead ionizer stand assembly) (30 inches high) ORDER NOW!



Download the Assembly Instructions Below:

 CCSTAND Assembly Instructions (Portable and Fixed Versions)

SPECIFICATIONS For Aerostat Guardian:

Input Voltage 120 VAC, 60 Hz, 0.5A (fan low, heater/light off); 2.5A (fan high, heater/light on)
230 VAC, 50 Hz, 0.2A (fan low, heater/light off); 1.5A (fan high, heater/light on)
Discharge 3.0 sec @ 18” center blower position; fan high-no diffusers (1000-100V)
Balance 0 ±5V @ 18” from blower face
Coverage Area 2’ x 4’
Cleanroom Class Meets ISO 14644-1 Class 5; Fed std. 209E Class 100
Weight 16 lb (7.3 kg)
 Dimensions 42.75″W x 4″H x 6.75″D (108.6 x 10.2 x 17.1 cm

Power Requirements: 120 VAC: 60 Hz o.5Amp (fan low, heater/light off) 2.5Amp (fan high, heater/light on) 230 VAC: 50 Hz, 0.2 Amp (fan low, heater off) 1.5Amp (fan high, heater/light on)

Aerostat Guardian Products and Accessories

Description CCS Part Number Unit Price Quantities?
Aerostat Guardian 120 V, 60 Hz  IA90900 $1119.00 call for discount ORDER NOW
Aerostat Guardian 120 V, 60 Hz, no diffusers  I4005306 $1119.00 call for discount ORDER NOW
Aerostat Guardian 230 V, 50 Hz CE-EU /4004261 IA90920 $1119.00 call for discount ORDER NOW
Aerostat Guardian 230 V, 50 Hz CE-UK I4009890 $1119.00 call for discount ORDER NOW
Accessories
Air Filter Retainer (3 required) IA1P003 $   15.00 ORDER NOW
Air Filter (package of 6) IA10117 $   19.00 ORDER NOW

CCS STAND: Either variation will work for all overhead ionizers, adjustable to width.

CCSTAND-FIXED CCS Stand for Ionizers fixed mount version $200 ORDER NOW
CCSTAND-PORTABLE CCS Stand for Ionizer Portable version $300 ORDER NOW

TARGET APPLICATIONS

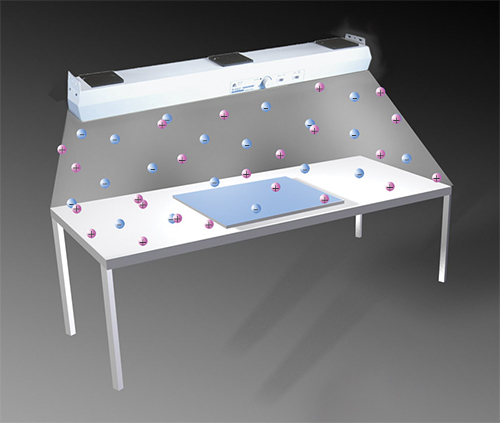

The Aerostat Guardian controls static “overhead” by blowing ionizing air down on the product at a workstation to save workbench space.

Additional information

Weight 7.7 lbs
Dimensions 109 × 21 × 26 in
Description

Aerostat Guardian 120 V, 60 Hz – IA90900, Aerostat Guardian 120 V, 60 Hz, no diffusers – I4005306, Aerostat Guardian 230 V, 50 Hz CE-EU – IA90920, Aerostat Guardian 230 V, 50 Hz CE-UK- I4009890, CCStand – Fixed Mount, CCStand – Portable Version

1 review for Simco-ION Aerostat Guardian

  1. Bethany Mulvaney

    This is a great overhead ionizer with fast decay times, great features: built-in light and option for heater for comfort as well as built in emitter cleaner!
