Simco-ION Aerostat Guardian CR2000

$200.00$1,185.00

Clear

Product Description

Class 10 Compatible; Inherent balance to 0 +/-5 V
Ion balance and ion output monitors, Lockout key switch, Silicone free surfaces, Patented built-in emitter cleaner


Simco-ION Aerostat Guardian CR2000

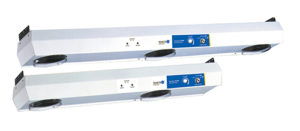

Cleanroom-rated Overhead Ionizing Blower with Ion Balance and Output Monitoring

Simco-Ion’s Guardian CR2000 Blower is designed specifically for use in cleanroom applications. The Guardian CR2000 features a patented circuit that results in balanced delivery of positive and negative ions, which ensures that the unit will maintain an ion balance of 0 ±5V. Balance stability is further enhanced by use of Simco-Ion’s unique “ion shields” at the fan outputs to reduce parasitic ion loss.

  • Inherently balanced to 0 ±5V
  • Ion balance and ion output monitors
  • Lockout key switch
  • Silicone-free component surfaces
  • Integrated emitter point cleaner



***ELIGIBLE FOR Free Shipping, Enter Promo Code: FREESHIP when you get to checkout!

CCSTAND – Available in fixed and portable versions!

Need or have an overhead ionizer, but don’t know where to mount it? Check out our new CCS Stand that will work for most any overhead ionizer for either portable version or fixed mount for  your work station! See link below for downloadable assembly instructions and more info!

Fixed Mount – $200.00 (54.5 inch overhead ionizer stand assembly) (30 inches high) ORDER NOW!

Portable Mount – $300.00 (54.5 inch overhead ionizer stand assembly) (30 inches high) ORDER NOW!



Download the Assembly Instructions Below:

 CCSTAND Assembly Instructions (Portable and Fixed Versions)

SPECIFICATIONS For Aerostat Guardian CR2000 Ionizer!

Input Voltage 2-fan: 120 VAC, 50/60 Hz, 0.2A; 230 VAC, 50/60 Hz, 0.1A
3-fan: 120 VAC, 50/60 Hz, 0.3A; 230 VAC, 50/60 Hz, 0.15A
Discharge 3.0 sec @ 18” center blower position fan high (1000-100V)
Balance 0 ±5V @ 18” from blower face
Coverage Area 2-fan: 2’ x 3’
3-fan: 2’ x 4’
Cleanroom Class Meets ISO 14644-1 Class 4; Fed std. 209E Class 10
Dimension 2-fan: 31.75″W x 4″H x 6.75″D (81 x 10 x 17 cm)
3-fan: 42.75″W x 4″H x 6.75″D (109 x 10 x 17 cm)
Weight 2-fan: 12 lb (5.5 kg)
3-fan: 15 lb (6.8 kg)

Power Requirements: 100V,120V, 230V AC, 50/60 Hz 0.2 Amp Max. current draw (120VAC)Power Inlet/OutletIEC 320

Air Volume Output3-Fan 135 CFM to 270 CFM low to high combined fan output2-Fan   90 CFM to 180 CFM low to high combined fan output

Aerostat Guardian CR2000 Products and Accessories

Description Part Number Unit Price High Quantities?
2-Fan Aerostat Guardian CR2000 120 V, 60 Hz IAGCR20 $1008.00 call for discount ORDER NOW
2-Fan Aerostat Guardian CR2000 230V, 50 Hz CE-EU IAGCR22 $1008.00 call for discount ORDER NOW
2-Fan Aerostat Guardian CR2000 230V, 50 Hz CE-UK I4008804 $1008.00 call for discount ORDER NOW
3-Fan Aerostat Guardian CR2000 120 V, 60 Hz- NA IAGCR30 $1185.00 call for discount ORDER NOW
3-Fan Aerostat Guardian CR2000 230 V, 50 Hz CE-EU IAGCR32 $1185.00 call for discount ORDER NOW
3-Fan Aerostat Guardian CR2000 230 V, 50 Hz CE-UK I4008805 $1185.00 call for discount ORDER NOW

CCS STAND: Either variation will work for all overhead ionizers, adjustable to width.

CCSTAND-FIXED CCS Stand for Ionizers fixed mount version $200 ORDER NOW
CCSTAND-PORTABLE CCS Stand for Ionizer Portable version $300 ORDER NOW

Ionization for Life Science Brochure

Static Control for Semiconductor Manufacturing Brochure

  • TARGET APPLICATIONS

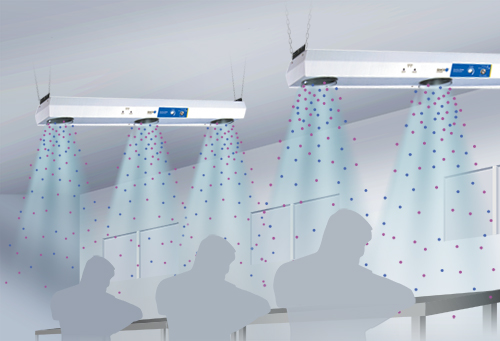

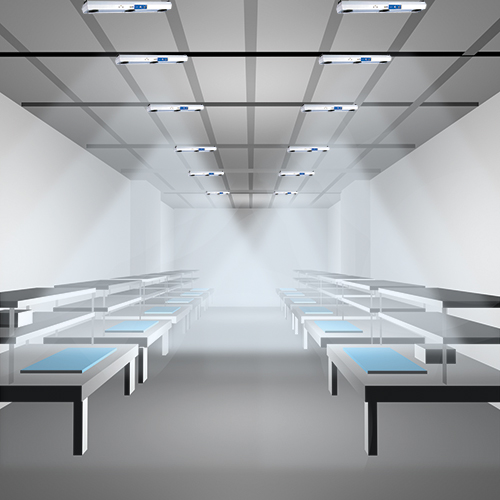

Cleanroom electrostatic control provided by the Guardian CR2000 “Cleanroom Rated” Overhead Ionizing Blower.

TARGET MARKETS

  • Electronics Assembly
  • Life Sciences
  • Back-End Semiconductor Processing
  • Flat-panel Display

Additional information

Weight 7 lbs
Dimensions 109 × 12 × 20 in
Description

2-Fan Aerostat Guardian CR2000 120 V, 60 Hz -IAGCR20, 2-Fan Aerostat Guardian CR2000 230V, 50 Hz CE-EU -IAGCR22, 2-Fan Aerostat Guardian CR2000 230V, 50 Hz CE-UK -I4008804, 3-Fan Aerostat Guardian CR2000 120 V, 60 Hz – NA -IAGCR30, 3-Fan Aerostat Guardian CR2000 230 V, 50 Hz CE-EU -IAGCR32, 3-Fan Aerostat Guardian CR2000 230 V, 50 Hz CE-UK -I4008805, CCStand – Fixed Mount, CCStand – Portable Version
