Simco-ION Aerostat FPD

$200.00$1,376.00

Clear

Product Description

Aerostat FPD utilizes reliable, low maintenance AC corona technology with high flow rate fans to provide fast static discharge performance.

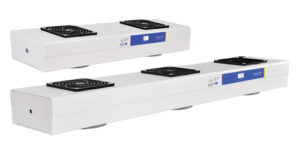

Simco-ION Aerostat FPD Overhead Ionizer ( 2, 3, or 4 fan versions available)



Wide Coverage Overhead Ionizing Blower with Exceptional Discharge Time

Simco-Ion’s Aerostat FPD Blower has been designed to control electrostatic charges in assembly and electronics manufacturing applications requiring stable operation with exceptionally fast discharge time performance. The FPD overhead products are built for reliability and simplicity.

  • High output, high velocity fans
  • Inherently balanced ionization
  • Ionization indicator light
  • Built-in emitter point cleaner
  • Optional fan air filter

***ELIGIBLE FOR Free Shipping, Enter Promo Code: FREESHIP when you get to checkout!

CCSTAND – Available in fixed and portable versions!

Need or have an overhead ionizer, but don’t know where to mount it? Check out our new CCS Stand that will work for most any overhead ionizer for either portable version or fixed mount for  your work station! See link below for downloadable assembly instructions and more info!

Fixed Mount – $200.00 (54.5 inch overhead ionizer stand assembly) (30 inches high) ORDER NOW!

Portable Mount – $300.00 (54.5 inch overhead ionizer stand assembly) (30 inches high) ORDER NOW!



Download the Assembly Instructions Below:

 CCSTAND Assembly Instructions (Portable and Fixed Versions)

Aerostat FPD utilizes reliable, low maintenance AC corona technology with high flow rate fans to provide fast static discharge performance. The inherent stability of the FPD product reduces maintenance frequency and a built in emitter cleaner reduces maintenance time. Our unique geometry and airflow control provide consistent performance, meeting the demands of product assembly operations.

Products feature self-monitoring to assure the user of controlled, consistent ion output.  A light indicates both that power is applied to the unit and that ions are being produced. Performance is enhanced by use of  industry leading and highly reliable AC technology.

Aerostat FPD ion air blowers provide the highest airflow and widest coverage area for big jobs, where providing the fastest discharge time is critical to meet process requirements. Available in two, three, and four fan models.

SPECIFICATIONS

Input Voltage 120 VAC, 60 Hz: 0.3A (2-fan); 0.4A (3-fan); 0.5A (4-fan)
230 VAC, 50 Hz: 0.2A (2-fan); 0.2A (3-fan); 0.3A (4-fan)
Discharge <1.0 sec @ 1’
<2.0 sec @ 2’
<3.0 sec @ 3’
<4.5 sec @ 4’
<6.0 sec @ 5’
from blower center, fan high (1000-100V), typical
Balance 0 ±10V
Coverage Area Overhead 2-fan: 2’W x 2’L (0.6m x 0.6m); 3-fan: 2’W x 3’L (0.6m x 0.9m); 4-fan: 2’W x 4’L (0.6m x 1.2m)
Benchtop 2-fan: 2’W x 5’L (0.6m x 1.5m); 3-fan: 3’W x 5’L (0.9m x 1.5m); 4-fan: 4’W x 5’L (1.2m x 1.5m)
Dimension 2-fan: 23.25″L x 4.0″H x 6.25″D (590 x 100 x 160 mm);
3-fan: 35.5″L x 4.0″H x 6.25″D (900 x 100 x 160 mm);
4-fan: 47.75″L x 4.0″H x 6.25″D (1215 x 100 x 160 mm)
Weight 2-fan: 10 lb (4.5 kg)
3-fan: 13 lb (5.9 kg)
4-fan: 16 lb (7.3 kg)

Power Requirements: 100-240 VAC, 50/60 Hz

Aerostat FPD Products and Accessories

Description Part Number Unit Price Internet Price
Aerostat FPD 2-fan, 120/220V 50/60Hz NAM I4011005  $1013.00 call for qty discount ORDER NOW
Aerostat FPD 2-fan, 120/220V 50/60Hz CE-EU I4011279 $1013.00 call for qty discount ORDER NOW
Aerostat FPD 2-fan, 120/220V 50/60Hz CE-UK I4011280 $1013.00 call for qty discount ORDER NOW
Aerostat FPD 3-fan, 120/220V 50/60Hz NAM I4011007 $1159.00 call for qty discount ORDER NOW
Aerostat FPD 3-fan, 120/220V 50/60Hz CE-EU I4011281 $1159.00 call for qty discount ORDER NOW
Aerostat FPD 3-fan, 120/220V 50/60Hz CE-UK I4011282 $1159.00 call for qty discount ORDER NOW
Aerostat FPD 4-fan, 120/220V 50/60Hz NAM I4011009 $1376.00 call for qty discount ORDER NOW
Aerostat FPD 4-fan, 120/220V 50/60Hz CE-EU I4011283 $1376.00 call for qty discount ORDER NOW
Aerostat FPD 4-fan, 120/220V 50/60Hz CE-UK I4011284 $1376.00 call for qty discount





ORDER NOW

CCS STAND: Either variation will work for all overhead ionizers, adjustable to width.

CCSTAND-FIXED CCS Stand for Ionizers fixed mount version $200 ORDER NOW
CCSTAND-PORTABLE CCS Stand for Ionizer Portable version $300 ORDER NOW

  • TARGET APPLICATIONS

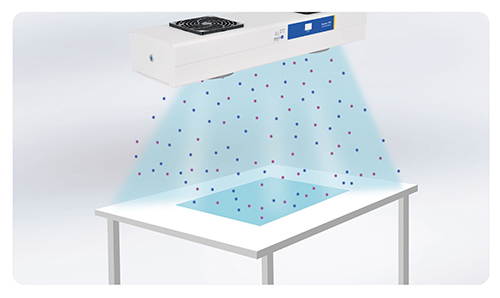

The Aerostat FPD controls static “overhead” by blowing ionizing air down on the product at a workstation

  • Flat-panel Display
  • Life Sciences
  • Electronics Manufacturing



The Aerostat FPD controls static “behind” a conveyor by shooting ionizing air horizontally across the product. Suitable for other large target areas.

Additional information

Weight N/A
Dimensions N/A
Description

Aerostat FPD 2-fan, 120/220V 50/60Hz NAM -i4011005, Aerostat FPD 2-fan, 120/220V 50/60Hz CE-EU -i4011279, Aerostat FPD 2-fan, 120/220V 50/60Hz CE-UK -i4011280, Aerostat FPD 3-fan, 120/220V 50/60Hz NAM -i4011007, Aerostat FPD 3-fan, 120/220V 50/60Hz CE-EU -i4011281, Aerostat FPD 3-fan, 120/220V 50/60Hz CE-UK -i4011282, Aerostat FPD 4-fan, 120/220V 50/60Hz NAM -i4011009, Aerostat FPD 4-fan, 120/220V 50/60Hz CE-EU -i4011283, Aerostat FPD 4-fan, 120/220V 50/60Hz CE-UK -i4011284, CCStand Fixed Mount $200, CCStand Portable Version $300
