Simco-Ion 5810i Critical Environment Overhead Ionizer

$325.00$1,563.00

Class 10 Compatible
3V or better balance (1V with the optional external feedback system) • Provides the best corona-based ESD protection for maximizing yields

FREE SHIPPING

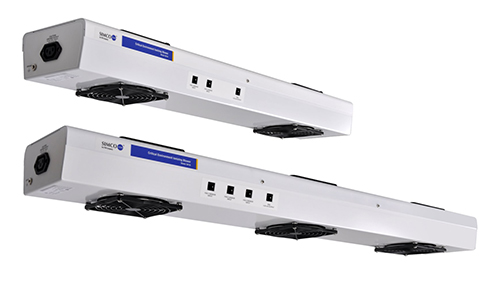

Simco-ION 5810i Critical Environment Overhead Ionizer



 Cleanroom Class 4 Ionizer



Multi-fan Daisy-chainable Ionizing Blower

Simco-Ion’s Model 5810i Blower is designed to provide industry-leading balanced ionization performance in cleanroom environments. The Model 5810i is certified for use in ISO Class 4 cleanrooms (Fed. Std. 209(e) Class 10). The ionizer can operate with external sensors to maintain precise balance (better than ±1V) by altering ion output and adapting to environment changes. With the reliability of steady-state DC, the established method for eliminating the effects of ESD and ESD-induced electromagnetic interference (EMI) in high-tech facilities, the Model 5810i delivers maximum ion output where and when you need it.

  • ±3V or better balance (±1V with the optional external feedback system)
  • Cleanliness rated at ISO 14644 Class 4 (Fed. Std. 209e Class 10)
  • Options for sensor input, FMS connection, alarms, fan speed and management control
  • Auto-Clean System option

Specifications

Input Voltage100-240 VAC (±10%), 50/60 Hz
Discharge±1000-100V @ <3 sec, taken 18” away (45.7 cm) from the blower at high fan speed
Balance±3V or better balance (±1V with the optional external feedback system)
Cleanroom ClassMeets ISO 14644-1 Class 4 (Fed Std. 209E Class 10)
Dimensions2-Fan: 3.8H x 6.1D x 32L in. (9.6H x 15.5D x 81.3L cm); 3-Fan: 3.8H x 6.1D x 40L or 44L in. (9.6H x 15.5D x 101.6L or 111.8L cm)
WeightAluminum 44” unit 10.3 lb (4.6 kg)

Target Markets

  • Electronics Assembly
  • Back-end Semiconductor Processing
  • Disk Drive

Target Applications

The Model 5810i Overhead Ionizing Blower is designed to save workbench space in critical cleanroom environments by controlling electrostatic discharge and particle contamination.



5810i Products and Accessories:

5810i Standard ModelPart NumberUnit Price
32” with 2 Fans and Fan Speed Fixed Highi91-5810i-C32H$1280ORDER NOW
32” with 2 Fans and Off/Low/Hi Fan speed controli91-5810i-C32X$1280ORDER NOW
40” with 3 Fans and Fan Speed Fixed Highi91-5810i-C40H$1410ORDER NOW
40” with 3 Fans and Off/Low/Hi Fan speed controli91-5810i-C40X$1410ORDER NOW
44” with 3 Fans and Fan Speed Fixed Highi91-5810i-C44H$1410ORDER NOW
44” with 3 Fans and Off/Low/Hi Fan speed controli91-5810i-C44X$1410ORDER NOW
5810i Sensor Input – FMS Output
32” with 2 Fans and Fan Speed Fixed High*i92-5810i-C32H-F$1433ORDER NOW
32” with 2 Fans and Off/Low/Hi Fan speed control*i92-5810i-C32X-F$1433ORDER NOW
40” with 3 Fans and Fan Speed Fixed High*i92-5810i-C40X-H
$1563ORDER NOW
40” with 3 Fans and Off/Low/Hi Fan speed control*i92-5810i-C40X-F$1563ORDER NOW
44” with 3 Fans and Fan Speed Fixed High*i92-5810i-C44H-F$1563ORDER NOW
44” with 3 Fans and Off/Low/Hi Fan speed control*i92-5810i-C44X-F$1563ORDER NOW
 5810 Standard Model with Auto Emitter Cleaner (RoHS):
 32″ with 2 Fans and Off/Low/Hi Fan speed control, Fan Auto Clean System, RoHS  i92-5810i-C32X-E$1383 ORDER NOW
 40″ with 2 Fans and Fan Speed Fixed High, Fan Auto Clean System, RoHS  i92-5810i-C40H-E $1383

 ORDER NOW

5810i Options
Optional Factory Installed Audible Alarmi99-5810i-ALARM$ORDER NOW
Optional Auto Clean System (requires 1 per fan)i99-8500i-01$ORDER NOW

CCS STAND: Either variation will work for all overhead ionizers, adjustable to width.

CCSTAND-FIXEDCCS Stand for Ionizers fixed mount version$325ORDER NOW
CCSTAND-PORTABLECCS Stand for Ionizer Portable version$425ORDER NOW

The Simco-ION Critical Environment Overhead Ionizer Model 5810i is designed to provide industry-leading balanced ionization performance in cleanroom environments. The Model 5810i is certified for use in ISO Class 4 cleanrooms (Fed. Std. 209(e) Class 10). The ionizer can operate with external sensors to maintain precise balance (better than 1V) by altering ion output and adapting to environment changes. With the reliability of steady-state DC, the established method for eliminating the effects of ESD and ESD -induced electromagnetic interference (EMI) in high-tech facilities, the Model 5810i delivers maximum ion output where and when you need it.  Complete compatibility with the operating conditions in today’s cleanrooms is ensured with silicone-free air bearing fans. Each fan is engineered for cleanliness, and sealed off from the rest of the chassis to meet critical cleanroom requirements. Ionizers that don’t match these quality standards risk contaminating manufacturing processes and possibly reducing product yields.

Features and Benefits

• 3V or better balance (1V with the optional external feedback system) • Provides the best corona-based ESD protection for maximizing yields
• Aluminum or stainless steel chassis • Different chassis materials are better suited to match specific workplace environments
• Options for sensor input, FMS connection, alarms, and management control • Increased control with immediate notification of alarms and the prevention of unauthorized adjustment to power or fan speed
• Auto-Clean System option • Patented device reduces emitter point cleanings, keeping points cleaner longer

Fan Speed Choices

The 5810i was designed specifically for use in cleanrooms up to and including ISO 14644 Class 4 (Fed. Std. 209(e) Class 10) in cleanliness. To minimize disruption of laminar airflow, the unit has a 3-position fan setting that optimizes static discharge performance with the smallest volume and velocity of airflow.

Factory Monitoring System

The blower includes an LED alarm light that indicates a range of possible conditions, including absence of ionization at the emitter points, or a stopped fan. An optional Audible Alarm is available. An optional Facility Monitoring System (FMS) provides an industry-standard 4-20 mA signal to your work cell controller for error detection.

Auto-clean System

The optional, patented Auto-clean System is an automated feature that provides reduced operation costs due to lower maintenance.  The Auto -clean System features a brush mechanism that sweeps the emitter points when the blower is turned off and on, allowing the Model 5810i to continually perform at optimum ion output and balance.

1V Operation

The Model 5810i ionizer’s optional external feedback sensor operates with the Novx Process Monitor Series 7000, Novx Single-fan Ionizer Controller Series 3150, Novx Passive Detection System Series 3350, Novx Active Detection System Series 3360, or other industry standard ionization feedback systems to detect and automatically correct the balance. With the antenna placed at the target area, feedback is sent to the Model 5810i blower’s internal control system. This ensures that your target maintains a 1V or better balance at all times.

Specifications for 5810 :

Input Voltage100-240 VAC (10%), 50/60 Hz
Output Voltage100-240 VAC, 50-60 Hz unfused, 5A max
ChassisAluminum chassis with epoxy-polyester powder coat, or stainless steel
IndicatorsGreen power-on LED; red alarm LED; optional audible alarm
Ion EmissionSteady-state DC
Emitter PointsISO 14644 Class 4 (Fed. Std. 209e) Class 10 titanium, 8 per fan
Airflow144 cfm per fan, typical
Discharge 1000V to 100V @ <3 sec., taken 18 in. away (45.7 cm) from the blower at high fan speed
Balance3V or better balance (1V with the optional external feedback system)
Audible NoiseHigh fan speed 62 dB, (typ); low fan speed 51 dB, (typ); measurements taken 12 in. (30.5 cm) from fan
MountingEye-bolts and S-hooks provided; U-shape and L-shape brackets available
Operating EnvironmentTemperature 50-90F (10-32C); humidity 30-70% RH, non-condensing
ControlsBalance adjust trimpot (one per fan), three-position fan control switch (high/ low/off) or fixed speed, sensor gain trimpot (optional; one per fan), slide switch for sensor type or no sensor
Dimensions3.8H x 6.1D x 32L in. (9.6H x 15.5D x 81.3L cm); 3.8H x 6.1D x 40L in. (9.6H x 15.5D x 101.6L cm); 3.8H x 6.1D x 44L in. (9.6H x 15.5D x 111.8L cm)
WeightAluminum 44” unit 10.3 lb (4.6 kg); stainless steel 44” unit: 15.3 lb (6.9 kg)
Daisy-chain CompatibilityMaximum of 10 units; power cord (18 AWG) between units should not exceed 12 in. (304 mm) in length
OptionsExternal sensor inputs with FMS connection; audible alarm; collimator; internal pre-set fan speed on high; power cord bracket; stainless steel chassis; Auto-Clean System
WarrantyTwo year limited warranty
CertificationsRoHS Compliant
