Simco-ION 6110 Air Cartridge

$74.00$577.00

Clear

Product Description

Compact and rugged, the cartridge can be used either for in-line ionization or as an ionizing blow-off gun.

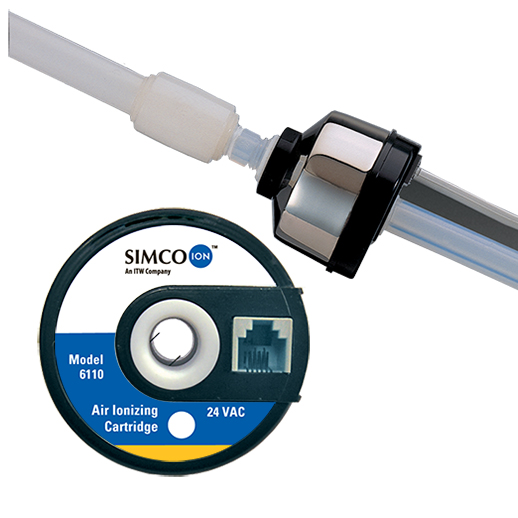

Simco-ION Model 6110/6110A Air Cartridge





In-line Ionization Reduces ESD Damage and Microprocessor Lock-up

Simco-Ion’s Air Ionizing Cartridge Model 6110 is compact and rugged and can be used either for in-line ionization or as an ionizing blow-off gun. For in-line use, connect the 6110 to a compressed air source and it is ready to ionize any type of production equipment or attach the 6110 to an ordinary air gun and the airstream is ionized for effective particle removal. An internal sensor initiates ionization only when the gun is triggered, ensuring on-demand control of static charge (Model 6110A).





  • IsoStat® technology
  • Internal air flow sensor (Model 6110A)
  • Shielded emitter points
  • Compact size
  • Optional blow-off gun kit

Model 6110

***ELIGIBLE for Free Shipping, Promo Code: FREESHIP when you get to checkout!



Specifications

Input Voltage 24 VAC, <1W from transformer
Discharge ±1,000 to 100V, <4 sec; tested in accordance with ANSI/ESD STM3.1-2006
Balance Better than ±25V @ 6 in. (15.2 cm)
Ion Emissions Steady-state DC
Dimension 2.2D x 3.1L in. (5.6D x 7.9L cm) not including fittings
Weight 6 oz (170.1g)

Description

Simco-ION Systems self-contained compressed air ionizing cartridge controls static charge in production, packaging, laboratory and other environments where static build-up can cause contamination, ESD, material handling problems or microprocessor lock-up. Compact and rugged, the cartridge can be used either for in-line ionization or as an ionizing blow-off gun. For in-line use, connect the 6110 to a compressed air source and it is ready to ionize any type of production equipment. Or attach the 6110 to an ordinary air gun and the airstream is ionized for effective particle removal. An internal sensor initiates ionization only when the gun is triggered, ensuring on-demand control of static charge (model 6110A).

Patented IsoStat Technology

ION Systems patented IsoStat Technology guarantees intrinsically balanced ionization and eliminates complicated feedback circuits. Ionizers incorporating this technology never need calibration and require very little maintenance. IsoStat is based on a law of physics, conservation of charge, which states that charge cannot be created or destroyed in an isolated system. By isolating the ionizer’s emitter points from ground, IsoStat ensures equal numbers of positive and negative ions.

Applications

In-line ionization. Reduces ESD damage and microprocessor lock-up in:

• IC packaging and marking
• Surface-mount equipment
• Device testing equipment
• Ionizing blow-off gun. Removes particles in:
• Printed circuit board assembly
• medical device manufacturing
• Film processing

Target Markets:

  • Electronics Manufacturing
  • Back-end Semiconductor Processing

Target Applications:

In-line ionization. Reduces ESD damage and microprocessor lock-up in:

  • IC packaging and marking
  • Surface-mount equipment
  • Device testing equipment

Ionizing blow-off gun. Removes particles in:

  • Printed circuit board assembly
  • Medical device manufacturing
  • Film processing

Model 6110 Air Ionizing Blow-off Gun/Hose Kit

Optional Gun/Hose Kit

Air Cartridge Products and Accessories:

Description Part Number Unit Price Special Pricing!
ION 91-6110 Air Cartridge Ionizer, Transformer NOT Included i91-6110 $503 call for qty discount ORDER NOW
ION 92-6110-US Air Cartridge Ionizer with 110VAC Transformer i92-6110-US $577 call for qty discount ORDER NOW
ION 91-6110A Air Cartridge Ionizer with Air Flow Sensor, Transformer NOT Included i91-6110A $503 call for qty discount ORDER NOW
ION 92-6110A-US Air Cartridge Ionizer with Air Flow Sensor,  with 110VAC Transformer i92-6110A-US $577 call for qty discount ORDER NOW
Accessory – ION 91-6150 Optional Air Gun/Hose kit for Cartridge Ionizer (12-ft coiled air hose) i91-6150 $154 ORDER NOW
ORDER NOW
Simco-ION Wall Transformer 33-1420-01 -120VAC (US power cord attached) :replaced 14-21527 33-1420-01 $76 ORDER NOW
Simco-ION Wall Transformer 33-1430-01  -230VAC (power cord must be specified from below) :replaced 14-21570 33-1430-01 $74 ORDER NOW




Additional information

Weight N/A
Dimensions N/A
