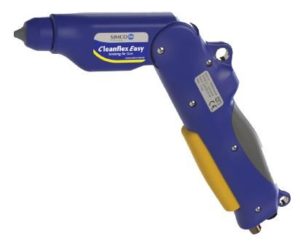

Simco-ION CLEANFLEX EASY GUN

$1,404.00

The Cleanflex Easy ionization gun is designed with unique features to clean electrostatically charged surfaces or parts. With a 24 VDC built-in power supply, the Cleanflex Easy eliminates the need for cumbersome high voltage cables and separate power supply unit.  The full hand trigger allows for easy control of air flow without the strain to one finger. The Cleanflex Easy Gun produces a very compact air stream with lower noise and reduced air consumption when compared to other anti static guns.

FREE SHIPPING

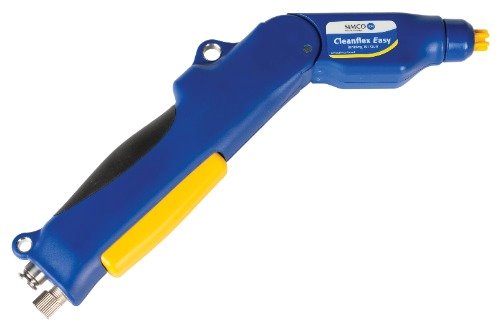

Simco-ION CLEANFLEX EASY GUN

The Cleanflex Easy ionization gun is designed with unique features to clean electrostatically charged surfaces or parts. With a 24 VDC built-in power supply, the Cleanflex Easy eliminates the need for cumbersome high voltage cables and separate power supply unit.  The full hand trigger allows for easy control of air flow without the strain to one finger.  With the specially designed opening of the nozzle, the Cleanflex Easy Gun produces a very compact air stream with lower noise and reduced air consumption when compared to other anti static guns.

Features and Benefits

  • 24 VDC input voltage and integrated ionization power unit

  • Lightweight

  • Ergonomic design

  • Full hand trigger

  • 70 degree adjustable nozzle angle

  • Safe blow-off nozzle opening

  • Low noise

  • Reduced air consumption

  • Improved blow-off force

 Power Supply  24VDC, max; 0.3A
 Connector  M12, female, 5 pole
 Pinning  1: 24 VDC, 2: HV OK, 3: 0V/GND, 4: 24 VDC, 5: Not connected
 Compressed Air  1-7 bar, clean and free from oil
 Connection  Quick disconnect type for ø8 mm [5/16”] hose
 LED Indicators  Flashing green fast (5 Hz): Starting up
Flashing green slow (1x every 3 seconds): Stand-by (ready for operation)
Continuous green: Air pressure OK and HV ON (normal operation)
Red: Failure check wiring or contact Simco-Ion

DOWNLOAD Simco-ION CLEANFLEX Data Sheet

DOWNLOAD Simco-ION CLEANFLEX Manual
