Advanced Energy/Trek 323 Series: Highly Sensitive, Versatile Electrostatic Voltmeter, Measure 0 to ±100 V

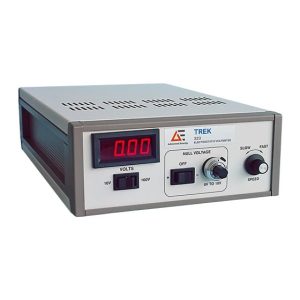

Trek 323 Series (now Advanced Energy)
Highly Sensitive, Versatile Electrostatic Voltmeter, Measure 0 to ±100 V
The Trek® 323 (Advanced Energy) is a versatile instrument. It is used in various electrostatic applications, including materials evaluation, electret studies, charge accumulation on disk drive assemblies, and other extremely sensitive ESD components. The Trek® 323 features adjustments to compensate for many sensitive testing conditions. The response speed control adjusts the speed/noise tradeoff of the AC response. While the drift/spacing null adjustment minimizes the variation in zero-offset voltages as the probe-to-test surface spacing changes.
Features
- Sensitivity: 5 mV
- Drift spacing/null adjustment
- Response speed control
- Additional probes available
Benefits
- Utilize low impedance probe sensor that assures high accuracy in high humidity and contaminated environments (e.g. airborne dust, toner, ions, and chemicals)
- Monitor detected output voltage through a 1:1 voltage monitor output and a switch-selectable scale of 10:1 or 20:1 voltage monitor output
- Use with various shaped probes (e.g. round, square)
Specifications
| Operational temperature range (°C): | 0 to 40 |
|---|---|
| Measurement Range: | 0 to ±100 V |
| Measurement Accuracy (%): | 0.0005 |
| Speed of Response (ms): | <300 |
