Advanced Energy / Monroe Model 282 Series Electrostatic Fieldmeter
$2,696.00
Model 282-1 IS Digital Stat Arc II Fieldmeter, Intrinsically Safe: UL approved for use in hazardous environments, Easy to read- Digital display, LED range finder, chopper-stabilized measurement technique, optional charge plate system for testing systems available.

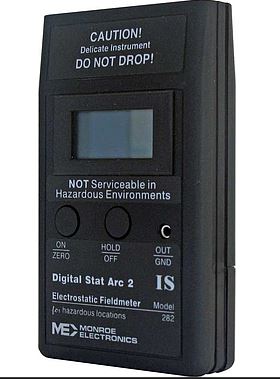

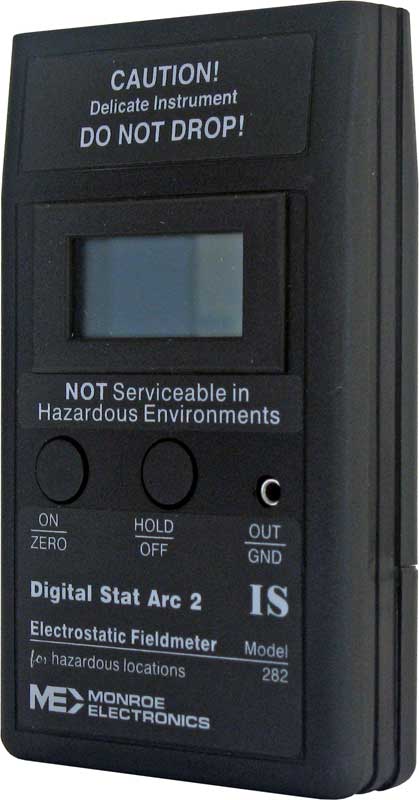

ELECTROSTATIC FIELD METER: Monroe Model 282IS
Hand Held INTRINSICALLY SAFE!
Non-contacting Static Meters for Consistently Accurate Readings
The MonroeTM 282 series StatArcTM fieldmeters are pocket-sized, non-contacting static meters for consistently accurate readings. Simply hold the instrument so the range finder LED beams from a non-pulsing circle indicating you’re at exactly the right distance from the target for readings between 20 kV to 2000 V (model dependent). An optional charge plate system allows for testing ionization systems. These fieldmeters are used to perform static surveys and evaluate charge accumulation in electronic manufacturing and in industrial operations such as converting, printing, packaging, and plastics processing.
Features
- LED pulsed beam range finder identifies calibrated distance from the surface
- Exclusive Auto-Zero circuit
- Chopper-stabilized measurement technique works in the presence of ionization
- Drift-free accuracy even in ionized environments
Benefits
- Select from various ranges to meet your application needs
- Use the hold button to capture transient readings
- Benefit from a 40-hour battery life
- Add the optional charge plate system for testing ionization systems
Specifications
| Operational temperature range (°C): | 0 to 50 |
|---|---|
| Measurement Range: | 0 to ±20,000 V |
| Measurement Accuracy (%): | ±5% |
| Speed of Response (ms): | 80 to 100 |
Model 282-1 IS Digital Stat Arc II Fieldmeter, Intrinsically Safe: UL approved for use in hazardous environments, Easy to read- Digital display, LED range finder, chopper-stabilized measurement technique, optional charge plate system for testing systems available.
Model 282-1 IS Digital Stat Arc II Fieldmeter, Intrinsically Safe
(Includes Carrying Case and Calibration Certificate) MMF0282IS
PRICE: $2696.00
**This product may be subject to a tariff. If applicable, we’ll notify you of any charges before processing your order.
**Advanced Energy products do not qualify for flat rate shipping. Best way ground shipping will be billed.
Accessories

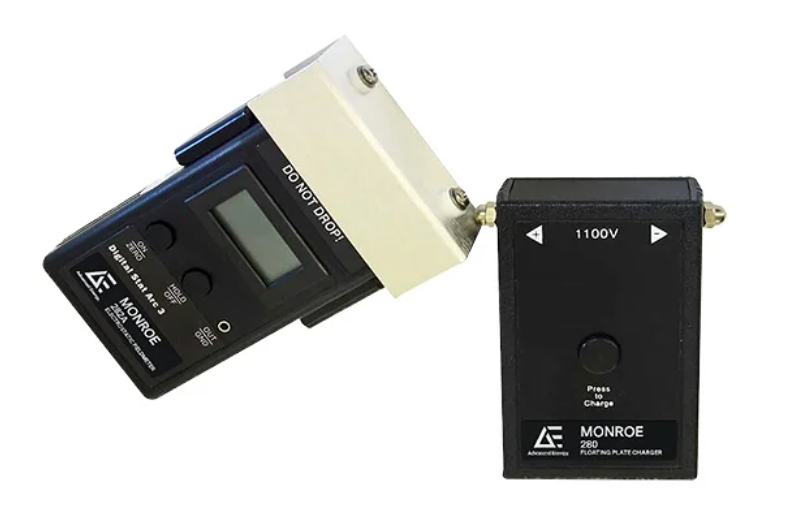

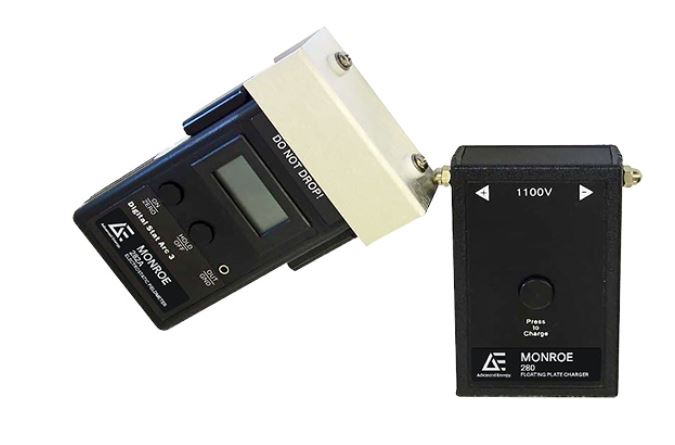

Monroe 282CPS
The Monroe 282CPS is an accessory for the Monroe 282 Fieldmeter that permits the Monroe 282 to measure ionizer performance. The Monroe 282CPS includes a charge plate attachment for the fieldmeter and a charging source to charge the plate attachment. The fieldmeter then measures the plate voltage during balance and decay tests.
