Monroe/Trek Model 282L


2000 Volt Range
Digital Stat-Arc 2 Static Locator, Modulated

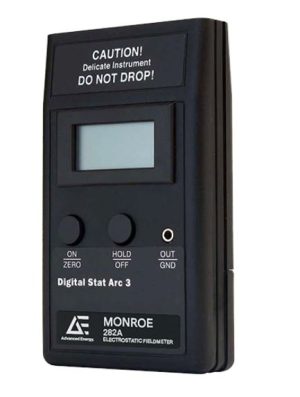

282a_new06Model 282L Digital Stat-Arc 3 Static Locator

©2020 Advanced Energy Industries, Inc.
The Monroe 282L 2000V range Digital Stat-Arc
TM fieldmeter is
a pocket-sized, non-contacting static meter for consistently

accurate readings. Simply hold the instrument so the range

finder LED beams from a non-pulsing circle indicating you’re

at exactly the right distance from the target for readings up to

2000 V.

Most handheld electrostatic fieldmeters are designed for multiple uses.  The same meter you wish to use to assure protection for Class 1 sensitive devices can also be used for monitoring webs of plastic in a converting application with voltages at 80kV or higher.  Now you no longer need to sacrifice resolution for a low cost meter.  The Model 282L allows you sensitive, low -voltage measurements with 1 volt resolution and consistently accurate readings.  And the chopper-stabilized circuitry is immune to ionization.  Zeroing is push-button simple.  Low cost is designed in too.  You cannot afford not to keep the Model 282L handy for:

*Monitoring — Static-free production spaces

*Testing — Ionizer performance using the optional charged plate adapter Model 282CPS

Accuracy has never come so easily or inexpensively. Converging  beams from two LEDs tell you when the instrument is precisely 1 inch from the  target, so reading is an exact indication of the static field being measured, up  to ±2 kV. Extended ranges of up to ±8 kV can be measured by increasing the  distance to the target by given amounts and multiplying the displayed reading by  2, 3, or 4. The Model 282L also features a HOLD button to freeze display and  automatic polarity detection. The chopper-stabilized design guarantees accurate  readings even in ionized environments.

Feature 1:Patented Auto-Zero Circuit
Feature 2:Pulsing-Beam Range Finder for Correct Readings  Always

Size2.4 x 4.2 x 0.9 inches (6.1 x 10.7 x 2.3 cm)
Weight5 oz (0.14kg) with battery
Power Requirements9 volt, Eveready #216 or equivalent NEDA #1604
Meter Range0 to ± 1999V at one inch. For other ranges see “Additional  Information”
Display Type:LCD
Output:1 volt signal represents 10kV reading
Accuracy± 5% of reading
Additional Information:Ranges:

kV——-Distance—–Multiply Reading

0-4—–4.0  inches——-2

0-6—–6.5 inches——–3

0-8—–8.5 inches——–4

Model 282L Digital Stat Arc 3  Products

DescriptionPart NumberUnit PriceInternet Price
Model 282L Digital Stat-Arc 3 Static LocatorMMF0282L$ 1459.00$ 1459.00ORDER NOW

(**Monroe/Trek products do not qualify for flat rate shipping!)
