Simco-ION MODEL 775 PVS

$1,609.00

Simco-Ion Model 775 PVS (Periodic Verfication System)

Model 775PVS Periodic Verification System

Ensures Accurate Distancing and Measurements In Ionized Environments

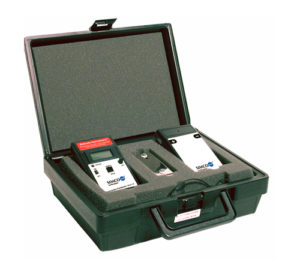

The Simco-Ion Periodic Verification System Model 775PVS is a hand-held alternative to a charged plate monitor. It consists of three components-a fieldmeter, a detachable plate, and a charger for measuring static charge and verifying ionizer performance. Used alone, the fieldmeter measures electrostatic fields on any surface.

  • Digital display
  • Distance ranging lights
  • Chopper circuit
  • NIST-traceable calibration

Specifications

775 Fieldmeter
Input 9 VDC alkaline battery
Output Analog output through miniature jack, 1V corresponds to 10 kV
Range ±0.00 to 19.99 kV @ 1” (2.5 cm)
Accuracy ±5%, chopper stabilized
Dimension 4.2L x 2.4W x 0.9D in. (10.7L x 6.1W x 2.3D cm)
Weight 5 oz (142g) with battery
Charge Plate
Capacity 15 picofarads ±2 picofarads
Range 0-2 kV for either polarity
Dimension 1.0H x 3.0W x 1.3D in. (2.5H x 7.6W x 3.3D cm)
Weight 2.5 oz (71g)
Charger
Input 9 VDC alkaline battery
Output 1300 VDC ±20% for each polarity
Dimension 4.2L x 2.4W x 0.9D in. (10.7L x 6.1W x 2.3D cm)
Weight 4 oz (113g) with battery
Static Charge Detector with Periodic Verification System – Model 775PVS  USD, Calibration certificate and accessories available, Please contact static@ccsteven.com or call us at 805-658-0207 for additional pricing or more information.
