Advanced Energy / Monroe 288C Series Active Easy-to-Use Charge Plate Monitor For Manual or Automated Testing
Advanced Energy / Monroe 288C Series
Active Easy-to-Use Charge Plate Monitor For Manual or Automated Testing

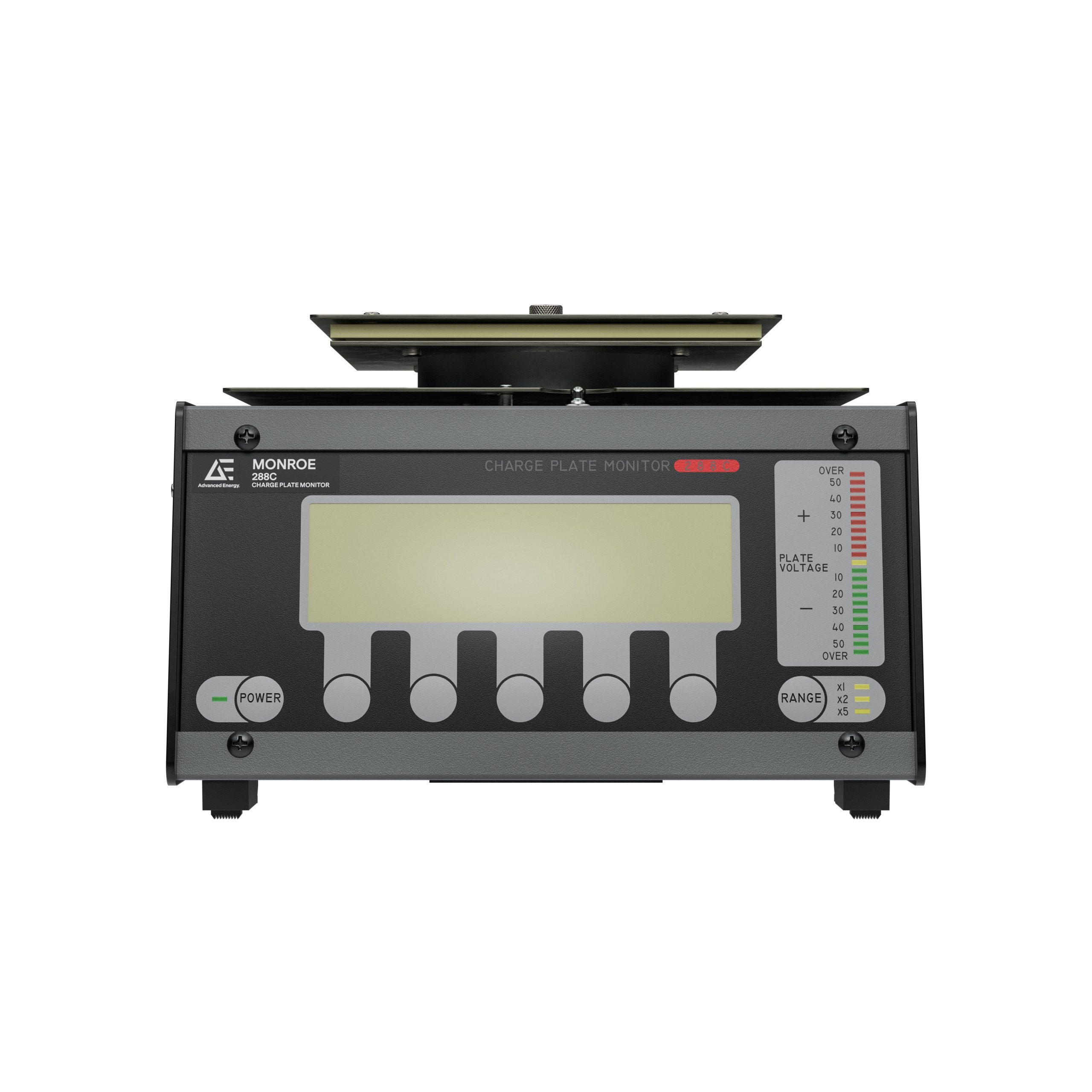

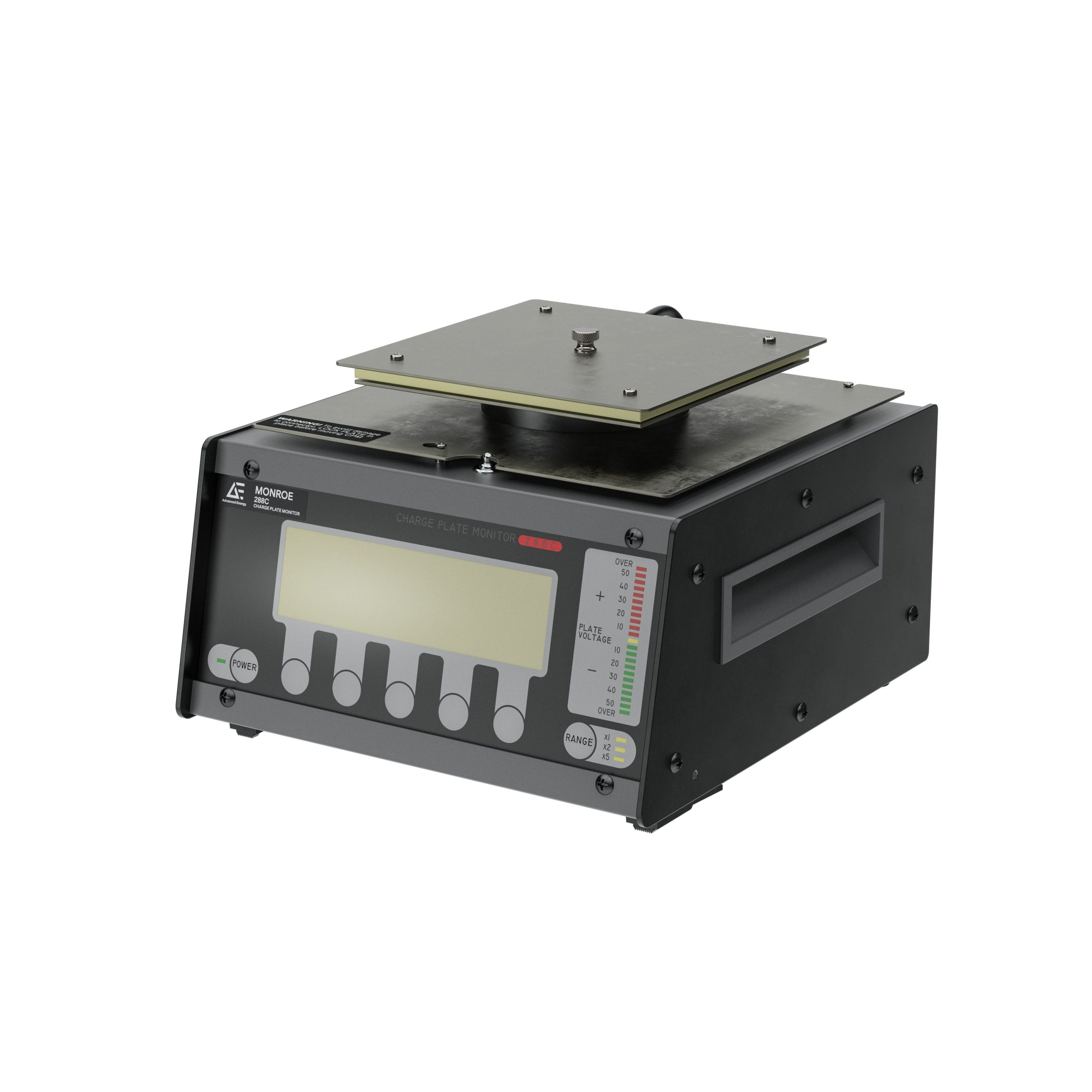

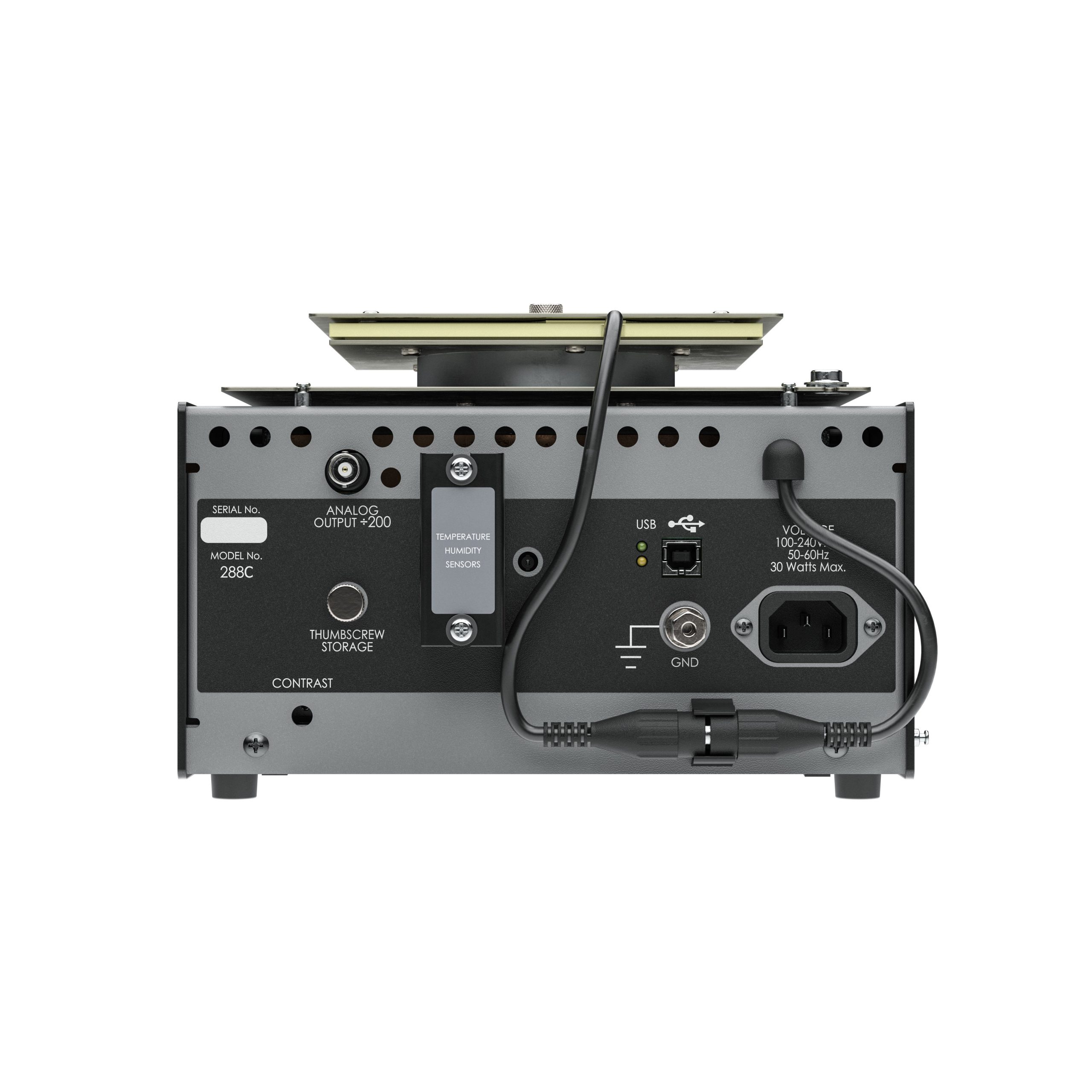

The Monroeᵀᴹ 288C is an easy-to-use, charge plate monitor for manual or automated testing. All test parameters are programmable, allowing tests to be optimized and not dictated by equipment limitations. Once programmed, the Monroeᵀᴹ 288C will perform a series of tests automatically: ± decays, balance, balance peaks, temperature, humidity, time/date are stored and may be reviewed via the display or downloaded to a PC. The included software permits the user to define and name ionizer locations, test setups, and sequences and upload them to the CPM. All of these features result in a flexible, easy-to-use instrument that facilitates audits while minimizing errors.
Features
- Internal battery for portable operation

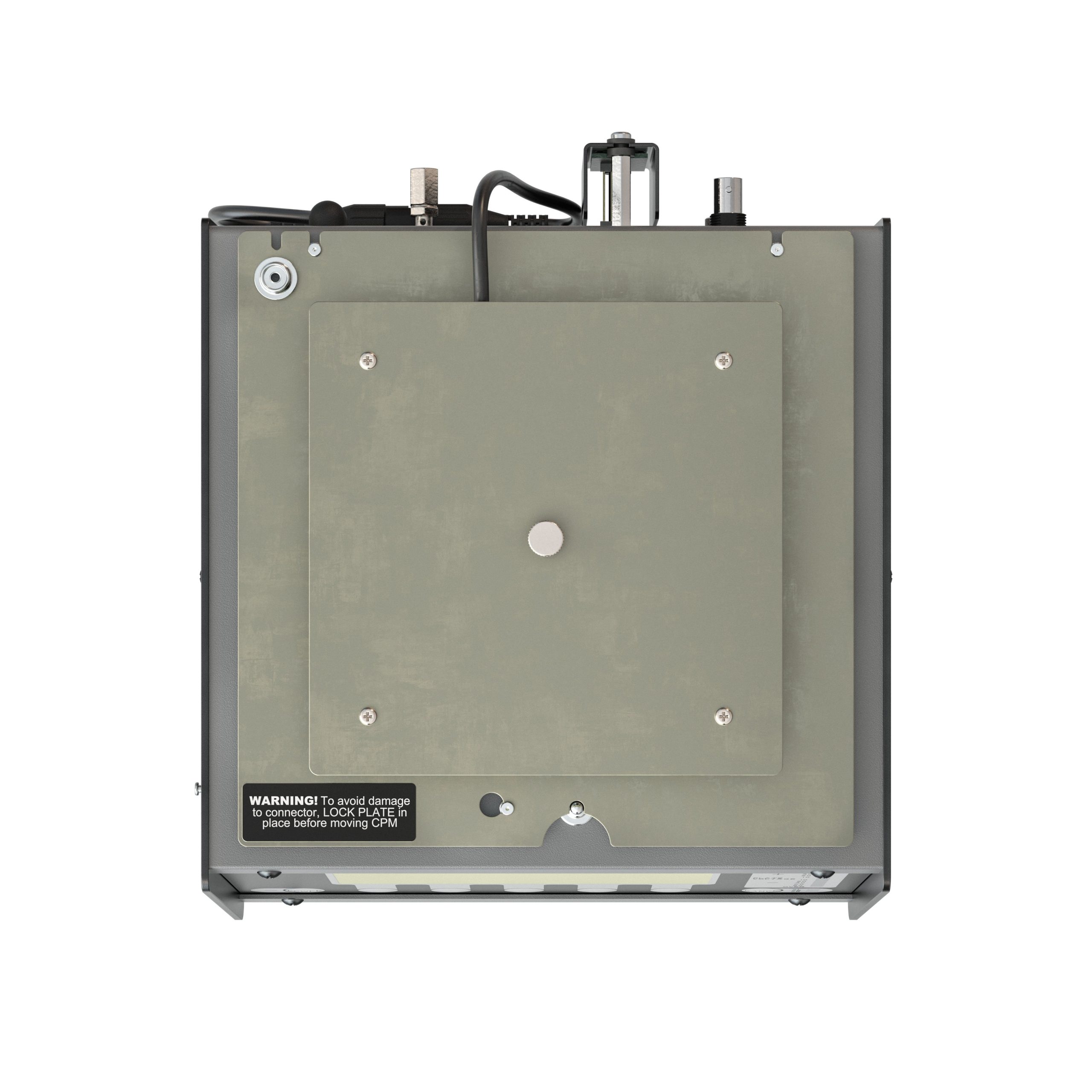

- Detachable 6 x 6-inch plate with optional 1 x 1 in and 3 x 3 in plates
- Built-in temperature and humidity sensors
- Auto-ranging to 0.1 V resolution below 100 V Meets ESD Association Standard ANSI / ESD STM 3.1
- CE compliant
Benefits
- Perform manual and automated testing of decay and balance
- Store up to 1500 tests total (not for each location), 600 locations, and 4 test protocols
- Use the large, easy-to-read, high contrast LCD display
- Configure operating parameters
- Utilize soft keys for highly intuitive programming
Specifications
| Operational temperature range (°C): | 5 to 35 |
|---|---|
| Measurement Range: | ±1200 V |
| Measurement Accuracy (%): | +/- 0.1% |
| Speed of Response (ms): | < 10 |
| Communications Interface: | USB |
