PCB/Horizontal Hold Carts by METRO
$780.00 – $2,587.00
PCB / HORIZONTAL HOLD CARTS
Standard-Duty (CBH Style) and Heavy Duty (CBL Style) Horizontal Hold Cart

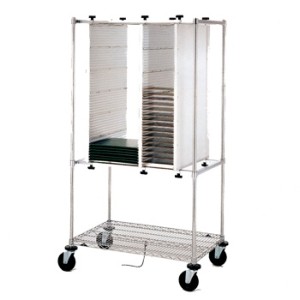

(CBL Version/Heavy Duty)

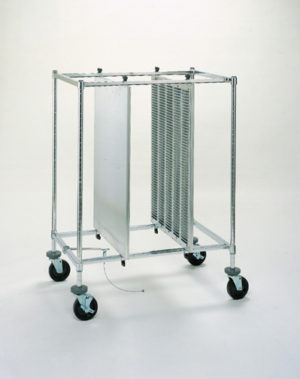

(CBH version/Benchside)
Safety and convenience are provided in this durable mobile unit!
• Adjustable panels with horizontal slides feature 5/8” (13mm) spacing for high-density loading.
• Ideal for transporting work-in process and storing large quantities of boards.
• Open chrome-plated steel panels allow for airflow and conductivity, and have slides that accept boards up to 1/8” (3mm) thick.
• Standard units include 2 end panels only. Optional center panel shown below.
ESD Classification: Conductive

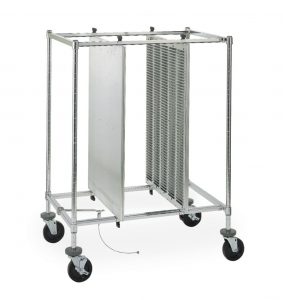

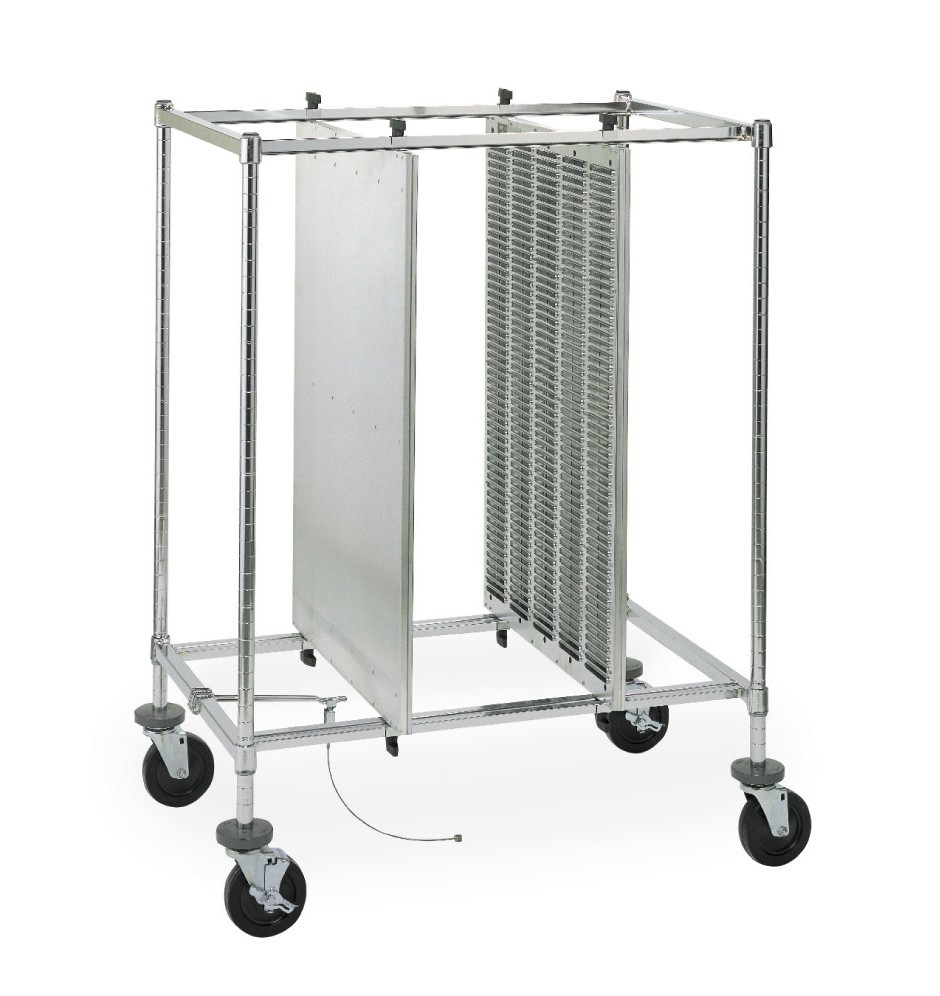

STANDARD-DUTY (CBH) Benchside Models (CALL or Email FOR Quantity Special Pricing!!!)
Width / Length / Height | Maximum Board Size | Part Number | Regular Price | Sale Price! |
24”x36”x50”, 610mmx914mmx1270mm | 22.5”x30.25” 571mmx768mm | HCBH534BC | $2833.00 | $1692.00 |
24”x48”x50”, 610mmx1219mmx1270mm | 22.5”x42.5” 571mmx1073mm | HCBH554BC | $2860.00 | $1708.00 |
FOR EITHER OF THE ABOVE | ||||
Double-Sided Center Panel for CHB Horizontal Hold Carts
(Includes one stop bar, knobs, and holding brackets).
Width / Length / Thickness (outside/inside) | Part Number | LIST | Your Price |
24”x41”x1.25”/0.9” 610mmx1041mmx32mm/20mm | HCBHP2 | $956.00 | $589.00 |
Horizontal Hold Carts Heavy-Duty (CBL Style) 51.03
High-density cart with 3/8” (8mm) deep slides for positive board capture provide 48 levels for circuit boards and 11/16” (18mm) on center spacing for volume loading. Standard units include two end, and one center panel. CBL available in Tran-Stor model only as standard product.
• Center panel (included) features slides on both sides.
• Slides accept boards up to 221/2” (571mm) long and up to 1/2” (12.7mm) thick.
ESD Classification: Conductive
Width / Length / Height | Maximum Board Size | Part Number | Regular Price | SALE PRICE! |
24”x36”x68”, 610mmx914mmx1727mm | 22.5”x30.25” 571mmx768mm | HCBL536BC | $4155.00 | $2481.00 |
24”x48”x68”, 610mmx1219mmx1727mm | 22.5”x42.5” 571mmx1073mm | HCBL556BC | $4199.00 | $2507.00 |
FOR EITHER OF THE ABOVE | ||||
Double-Sided Center Panel for CBL Horizontal Hold Carts
Width / Length / Thickness | Part Number | Price | SALE PRICE: |
23.5”x37.25”x1.63” 596mmx946mmx41mm | HCBLP2 | $1306 | $780.00 |
High-Temperature Kit
Description | Part Number | Price | |
High Temperature Kit | HTK-1 | Call for Price |
HTK1 includes 4 high-temperature casters (two with brakes), two “Caution Hot” labels, and 4 metal post caps. Required for temperatures over 160F (70C). Kit good to 400F (205C).
